Φ10*1.5mm UHF RFID Metal Tag


Φ10*1.5mm UHF RFID Metal Tag

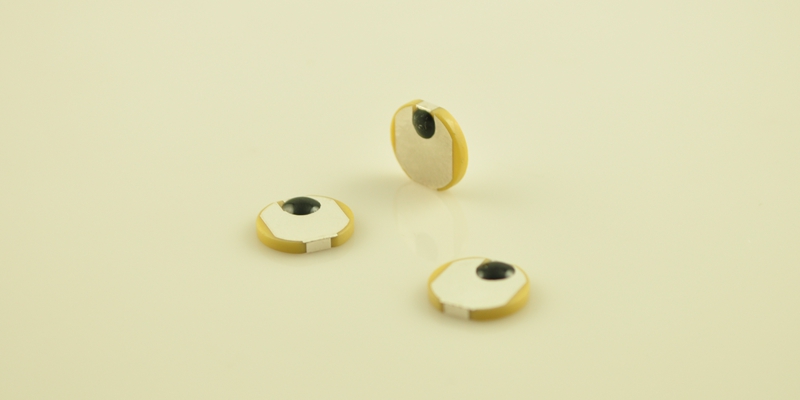

                                   UHF RFID Metal Tag Φ10*1.5mm

EVERTREND is a leading supplier for UHF RFID Metal Tag. The EVERTREND RFID metal tag has been used in most applications, such as logistics tracking, Asset Tracking, Container Tracking etc.

UHF RFID Metal Tag Φ10*1.5mm is an important member, famous for its good performance and small size in Evertrend UHF RFID Metal Tag family. It is mostly used inside the equipment such as PC, TV etc.

Features introduction

Tag Size: Φ10*1.5mm

Tag type: Passive UHF RFID Tag, Read/Write

Protocol: EPC Class1Gen2(ISO18000-6C)

Frequency range: 860~928MHz

Chip: Alien Higgs3, Impinj M4 (Customizable)

Storage: EPC 96Bits, User 512Bits

Reading distance: 0.5~1m (depend on the reader)

Reading distance will be different according to the environment and antenna gain

Erase cycle:≥100,000

Temperature: -40~200℃

Attachment: 3M9495LE(-40~150℃)

Protective Level: IP68

Electrostatic Protection: 2000V

Physical parameters:

Dimension: (±0.2mm)   Φ12*1.5mm

Base Material: ceramics

Antenna: Etching Copper foil

Attachment 3M self adhesive

Applications:

Asset Management

Warehousing Management

Matel pallet Administration

Administration of high pressure container
